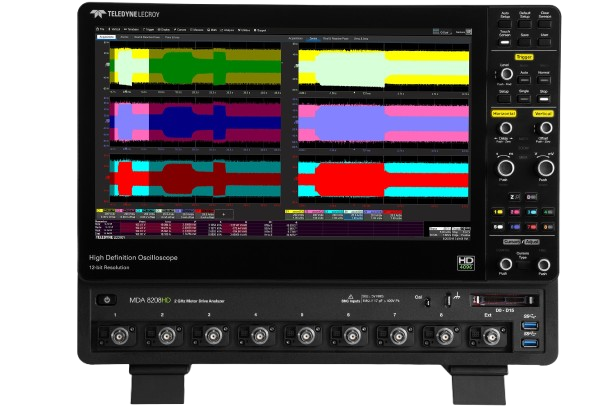

MDA 8000HD ( 12-bit 高解析)

8 通道, 10GS/s 取樣率, 記憶深度50 Mpts , 電機驅動分析儀

頻寬: 350 MHz 、 1 GHz 、 2 GHz



The Ultimate in 3-phase Power and Control Analysis

Teledyne LeCroy Motor Drive Analyzers and our 8-channel, 12-bit resolution High Definition Oscilloscope (HDO®) platform acquire signals and calculate 3-phase electrical and mechanical power quantities.

  • Acquire any signal signal for short or long durations – everything on one display
  • Calculate 3-phase electrical and mechanical power at your bench
  • Correlate complex power, control and motor behaviors
  • Have all of the general-purpose utility of a high-bandwidth, high-resolution oscilloscope





加入詢價單 機型 頻寬 垂直分辨率 通道數 取樣率 記憶深度 MSO(Logic analyzer)
MDA 8038HD    350 MHz 12 位元 8 10 GS/s on 8 Ch with Enhanced Sample Rate Standard: 50 Mpts (8 ch) / 100 Mpts (4 ch) / 200 Mpts (2 ch) Option: 500~ 5000 Mpts per channel Option
MDA 8108HD    1 GHz 12 位元 8 10 GS/s on 8 Ch with Enhanced Sample Rate Standard: 50 Mpts (8 ch) / 100 Mpts (4 ch) / 200 Mpts (2 ch) Option: 500~ 5000 Mpts per channel Option
MDA 8208HD 2 GHz 12 位元 8 10 GS/s on 8 Ch with Enhanced Sample Rate Standard: 50 Mpts (8 ch) / 100 Mpts (4 ch) / 200 Mpts (2 ch) Option: 500~ 5000 Mpts per channel Option
