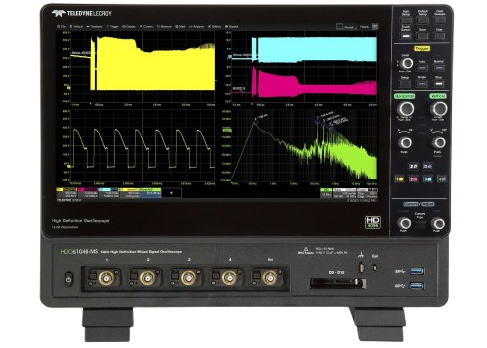

HDO6000B ( 12-bit 高解析 )
4通道, 10 GS/s 取樣率, 50 Mpts/Ch 記憶深度
頻寬: 350 MHz 、 500 MHz 、 1 GHz
HDO6000B 始終提供全時域12位元、更大的顯示屏、更小的佔用空間和更多功能，可捕捉每一個細節。
產品特色
- 高解析度 - 全時域12位元
- 更大的顯示屏，更小的輕薄機身，最多的工作台空間
- 更多的能力，更高的生產力
- 區域觸發 – 複雜訊號的簡單觸發
最高解析度 - HD4096 高清技術，全時域12位元
Teledyne LeCroy 12-bit 高解析度示波器使用獨特的 HD4096 技術提供卓越且不折不扣的測量性能。 HD4096 技術在全頻寬下提供最高的解析度和最低的雜訊——始終為 12 位元，毫不妥協。
更大的顯示屏、輕薄的機身、更多的工作台空間
- 15.6 英寸顯示屏，解析度為 1920x1080
- 與競爭對手相比最時尚的儀器。 深度減少 25%。
- 與競爭對手相比，佔用更少的工作台空間
更多的能力，更高的生產力
使用專用工具提高生產力
- MAUI Studio
- 頻譜分析
- QualiPHY 協議測試
Computer Upgrade |
| HDO6KB-SSD-02 Replacement Removable Solid State Drive for HDO6000B |
Remote Control/Network Options |
| USB2-GPIB External USB 2.0 to GPIB IEEE 488.2 adapter |
Power Analysis Software |
| HDO6K-POWER-DEVICE Power Device Analysis Option for HDO6000 |
| HDO6K-THREEPHASEHARMONICS 3-phase Harmonics Calculation Option for HDO6000 (only available with HDO6K-THREEPHASEPOWER) |
| HDO6k-DIG-PWR-MGMT Digital Power Management Analysis Software Option for HDO6000 |
| HDO6K-THREEPHASEPOWER 3-phase Power Analysis software for HDO6000 |
| HDO6K-THREEPHASEDQ0 3-phase dq0 Transform option for HDO6000 |
| HDO6K-THREEPHASEVECTOR 3-phase Vector Display option for HDO6000 |
| HDO6K-PWR Power Analysis Option for HDO6000 |
Serial Trigger and Decode |
| HDO6K-100BASE-T1 TDMP 100Base-T1 Trigger, Decode, Measure/Graph, and Physical Layer Option for HDO6000 |
| HDO6K-QSPI TD QSPI (Simple Data, Dual-, Quad-SPI) Trigger and Decode Option for HDO6000-Series |
| HDO6K-DPAUX TD DisplayPort AUX Trigger and Decode Option for HDO6000 |
| HDO6K-DPAUX TDMP DisplayPort AUX Trigger, Decode, Measure/Graph, and Physical Layer Option for HDO6000 |
| HDO6K-100Base-T1bus TD 100Base-T1 Trigger and Decode Option for HDO6000 |
| HDO6K-1553 TD MIL-STD-1553 Trigger and Decode Option for HDO6000 |
| HDO6K-USBPD TD USB-PD Trigger and Decode Option for HDO6000 |
| HDO6K-10BASE-T1S TDME 10Base-T1S Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-1553 TDME MIL-STD-1553 Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-USBPD TDMP USB-PD Trigger, Decode, Measure/Graph, and Physical Layer Option for HDO6000 |
| HDO6K-10BASE-T1S TD 10Base-T1S Trigger and Decode Option for HDO6000 |
| HDO6K-USB4SB TDMP USB4-SB Trigger, Decode, Measure/Graph, and PHY Measurement Option for HDO6000 |
| HDO6k-ARINC429BUS DME SYMBOLIC ARINC 429 Bus Symbolic Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-USB4SB TD USB4-SB Trigger and DecodeOption for HDO6000 |
| HDO6K-ARINC429BUS Dsymbolic ARINC 429 Bus Symbolic Decode option for HDO6000 |
| HDO6K-Audiobus TD AudioBus trigger and decode option for HDO6000 |
| HDO6K-Audiobus TDG AudioBus trigger, decode, and graph option for HDO6000 |
| HDO6K-CAN FDbus TD CAN and CAN FD Trigger and Decode Option for HDO6000 |
| HDO6K-CAN FDBUS TDME SYMBOLIC CAN and CAN FD Symbolic Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-CAN XL TD CAN/ CAN FD/ CAN XL Trigger and Decode Option for HDO6000 |
| HDO6K-CAN XL TDME SYMBOLIC CAN /CAN FD/ CAN XL Symbolic Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-DigRF3Gbus D DigRF 3G Bus Decode option for HDO6000 |
| HDO6K-DigRFv4bus D DigRF V4 Bus Decode option for HDO6000 |
| HDO6K-DPHYbus D MIPI D-PHY CSI-2, DSI Bus Decode option for HDO6000 |
| HDO6K-EMB TD Bundle: Includes I2C, SPI, UART-RS232 Trigger and Decode Options for HDO6000 |
| HDO6K-EMB TDME Bundle: Incl. I2C, SPI, UART-RS232 Trigger, Decode, Measure/Graph, and Eye Diagram Opt. for HDO6000 |
| HDO6K-EMB TDME Bundle: Incl. I2C, SPI, UART-RS232 Trigger, Decode, Measure/Graph, and Eye Diagram Opt. for HDO6000 |
| HDO6K-ENETbus D ENET Bus Decode Option for HDO6000 |
| HDO6K-FlexRaybus TD FlexRay Trigger and Decode Option for HDO6000 |
| HDO6K-FLEXRAYBUS TDMP FlexRay Trigger, Decode, Measure/Graph and Physical Layer Option for HDO6000 |
| HDO6K-I2Cbus TD I2C Trigger and Decode Option for HDO6000 |
| HDO6K-I2CBUS TDME I2C Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6k-I3Cbus TD I3C Trigger and Decode Option for HDO6000 (I2C supported) |
| HDO6k-I3Cbus TDME I3C Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 (I2C supported) |
| HDO6K-LINbus TD LIN Trigger and Decode Option for HDO6000 |
| HDO6K-LINBUS TDME LIN Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-Manchesterbus D Manchester Bus Decode Option for HDO6000 |
| HDO6K-MDIObus D MDIO Decode for HDO6000 Series |
| HDO6K-NRZbus D NRZ Bus Decode Option for HDO6000 |
| HDO6K-PMBus TD PMBus Trigger and Decode Option for HDO6000 |
| HDO6K-PMBus TDME PMBus Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-SENTbus TD SENT Trigger and Decode Option for HDO6000 |
| HDO6K-SENTbus TDME SENT Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-SMBus TD SMBus Trigger and Decode Option for HDO6000 |
| HDO6K-SMBus TDME SMBus Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-SpaceWirebus D SpaceWire Decode Option for HDO6K series |
| HDO6K-SPIbus TD SPI Trigger and Decode Option for HDO6000 |
| HDO6K-SPIBUS TDME SPI Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6k-SPMIbus TD SPMI Trigger and Decode Option for HDO6000 |
| HDO6k-SPMIbus TDME SPMI Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-UART-RS232bus TD UART-RS232 Trigger and Decode Option for HDO6000 |
| HDO6K-UART-RS232BUS TDME UART-RS232 Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
| HDO6K-USB2-HSICbus D USB 2.0 HSIC Decode Option for HDO6000 |
| HDO6K-USB2bus TD USB 2.0 Trigger and Decode Option for HDO6000 |
| HDO6k-USB2BUS TDME USB 2.0 Trigger, Decode, Measure/Graph, and Eye Diagram Option for HDO6000 |
Jitter Analysis Software |
| HDO6K-CLOCK-X-PRO Clock Expert Jitter Analysis Framework with SSC, Phase Noise, and Accumulated Jitter Analysis |
| HDO6K-CLOCK-X Clock Expert Jitter Analysis Framework |
| HDO6K-JITKIT Clock, clock-data Jitter Analysis and views of time, statistical, spectral, and jitter overlay |
Digital Filtering Software |
| HDO6K-DFP2 Digital Filter Software Package for HDO6000 |
Serial Data Compliance |
| HDO6K-ET-PMT Electrical Telecom Mask Test Package |
| QPHY-100Base-T1 QualiPHY Enabled 100Base-T1 (Automotive Ethernet) Compliance Software Option |
| QPHY-10Base-T1L QualiPHY Enabled 10Base-T1L (Industrial Ethernet) Compliance Software Option |
| QPHY-10Base-T1S QualiPHY Enabled 10Base-T1S (Automotive Ethernet) Compliance Software Option |
| QPHY-ENET QualiPHY Enabled Ethernet 10/100/1000BT Compliance Software Option |
| QPHY-MOST50 QualiPHY Enabled MOST50 ePHY Compliance Software Option. Requires options DFP2 and SDM or SDA3 |
| QPHY-USB QualiPHY Enabled USB 2.0 Compliance Software Option |
Serial Data Analysis |
| HDO6K-SDAX-NRZ NRZ Serial Data Analysis Framework, Eye,Jitter, Noise and Crosstalk Measurements |
| HDO6K-SDAX-PAM PAM Serial Data Expert Analysis Framework, Eye,Jitter and Noise Measurements |
| HDO6K-SDM Serial Data Mask Software Package for HDO6000 |
Other Software Options |
| HDO6K-ZONETRIGGER Zone Trigger option for HDO6000 |
| HDO6K-SPECTRUM-1 Spectrum Analyzer for HDO6000 - 1 trace |
| HDO6K-EMC EMC Pulse Parameter Software Package for HDO6000 |
| HDO6K-Q-SCAPE Q-Scape Multi-tab Display Option for HDO6000 |
| HDO6K-SPECTRUM-PRO-2R Spectrum Analyzer for HDO6000 - 2 traces + reference |
| HDO6K-XDEV Advanced Customization Option for HDO6000 |
| MAUI Studio Pro MAUI Studio Pro Offline Remote and PC Analysis Software License |
Miscellaneous |
| HDO6KB-RACKMOUNT Rackmount kit for HDO6000B |
| WPHD-CARRYCASE WavePro HD Carrying Case |
Serial Data Test Fixtures |
| TF-AUTO-ENET Automotive Ethernet Breakout Test Fixture for 100Base-T1 and 1000Base-T1 Debug |
| TF-AUTO-ENET-SMA 4 pack of SMA Connector boards for TF-AUTO-ENET |
| TF-AUTO-HMTD Test Fixture HMTD-Connector (m) to SMA (f) |
| TF-AUTO-MATENET Test Fixture MATEnet-Connector (m) to SMA (f) |
| TF-AUTO-MINI50 Test Fixture Mini-50-Connector (m) to SMA (f) |
| TF-USB-C-HS USB4 High-speed and Sideband Test Coupon Fixture |
| TF-USB-C-SB USB4 Sideband Test Coupon Fixture |
| 加入詢價單 | 機型 | 頻寬 | 垂直分辨率 | 通道數 | 取樣率 | 記憶深度 | MSO(Logic analyzer) |
|---|---|---|---|---|---|---|---|
| | HDO6034B | 350 MHz | 12 位元 | 4 | 10 GS/s on all channels | Standard: 50 Mpts/ch for all channels [Option -L : 100 Mpts/ch & Option -XL : 250 Mpts/ch for all channels) | Option |
| | HDO6054B | 500 MHz | 12 位元 | 4 | 10 GS/s on all channels | Standard: 50 Mpts/ch for all channels [Option -L : 100 Mpts/ch & Option -XL : 250 Mpts/ch for all channels) | Option |
| | HDO6104B | 1 GHz | 12 位元 | 4 | 10 GS/s on all channels | Standard: 50 Mpts/ch for all channels [Option -L : 100 Mpts/ch & Option -XL : 250 Mpts/ch for all channels) | Option |
| | HDO6054B-MS | 500 MHz | 12 位元 | 4 | 10 GS/s on all channels | Standard: 50 Mpts/ch for all channels [Option -L : 100 Mpts/ch & Option -XL : 250 Mpts/ch for all channels) | Standard |
| | HDO6104B-MS | 1 GHz | 12 位元 | 4 | 10 GS/s on all channels | Standard: 50 Mpts/ch for all channels [Option -L : 100 Mpts/ch & Option -XL : 250 Mpts/ch for all channels) | Standard |
