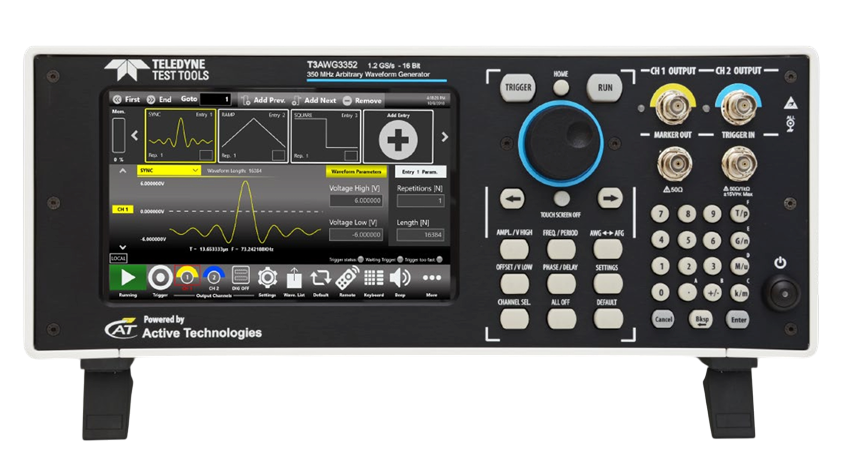

T3AWG3000

任意波形產生器 ( 2、4、8 通道 )

頻寬: 250 MHz、350 MHz、350 MHz

Datasheet (2ch) ‌ Datasheet (4ch & 8ch) ‌ User Manual ‌
  • Available in 250 MHz and 350 MHz models.
  • 2, 4 and 8 channel modes.
  • 16-bit vertical resolution.
  • Max Sampling rate of 1.2 GS/s.
  • Max sinewave frequency of 250 MHz and 350 MHz respectively.

The disruptive and innovative architecture enables to generate/add 8, 16 or 32 channel digital patterns (respectively on 2,4 or 8 analog channels platform) and to operate all models in true arbitrary mode or Direct Digital Synthesis (DDS) mode. Thanks to their high performance, versatile functionality and outstanding usability, the HD T3AWG3K series is the ideal AWG generator for today's and tomorrow's test challenges.



加入詢價單 機型 敘述 備註
T3AWG3252 2 Ch, 250 MHz, 16 bit, 128Mpts/Ch, 6 Vpp output, Wave Sequencing HD Arbitrary Waveform Generator
T3AWG3352 2 Ch, 350 MHz, 16 bit, 128Mpts/Ch, 6 Vpp output, Wave Sequencing HD Arbitrary Waveform Generator
T3AWG3254 4 Ch,250 MHz,16 bit,128Mpts/Ch,6 Vpp output,AFG/AWG, Wave Sequencing HD Arbitrary Waveform Generator
T3AWG3354 4 Ch,350 MHz,16 bit,128Mpts/Ch,6 Vpp output,AFG/AWG, Wave Sequencing HD Arbitrary Waveform Generator
T3AWG3258 8 Ch,250 MHz,16 bit,128Mpts/Ch,6 Vpp output,AFG/AWG, Wave Sequencing HD Arbitrary Waveform Generator
T3AWG3358 8 Ch,350 MHz,16 bit,128Mpts/Ch,6 Vpp output,AFG/AWG, Wave Sequencing HD Arbitrary Waveform Generator
