• Highest resolution – 12 bits all the time
• More channels, flexibility – 8 analog and 16 digital channels
• Longest Memory – 5 Gpt records with simple navigation – no compromise
• View 16 channels on one display with OscilloSYNC™
• Powerful, deep toolbox enables and simplifies complex analysis
• MAUI with OneTouch user interface for intuitive and efficient operation
• Zone Trigger – Simple Triggering for Complex Signals

Teledyne LeCroy high definition 12-bit oscilloscopes use unique HD4096 technology to provide superior and uncompromised measurement performance. HD4096 technology provides the highest resolution and lowest noise at full bandwidth—12 bits all the time with no compromise.

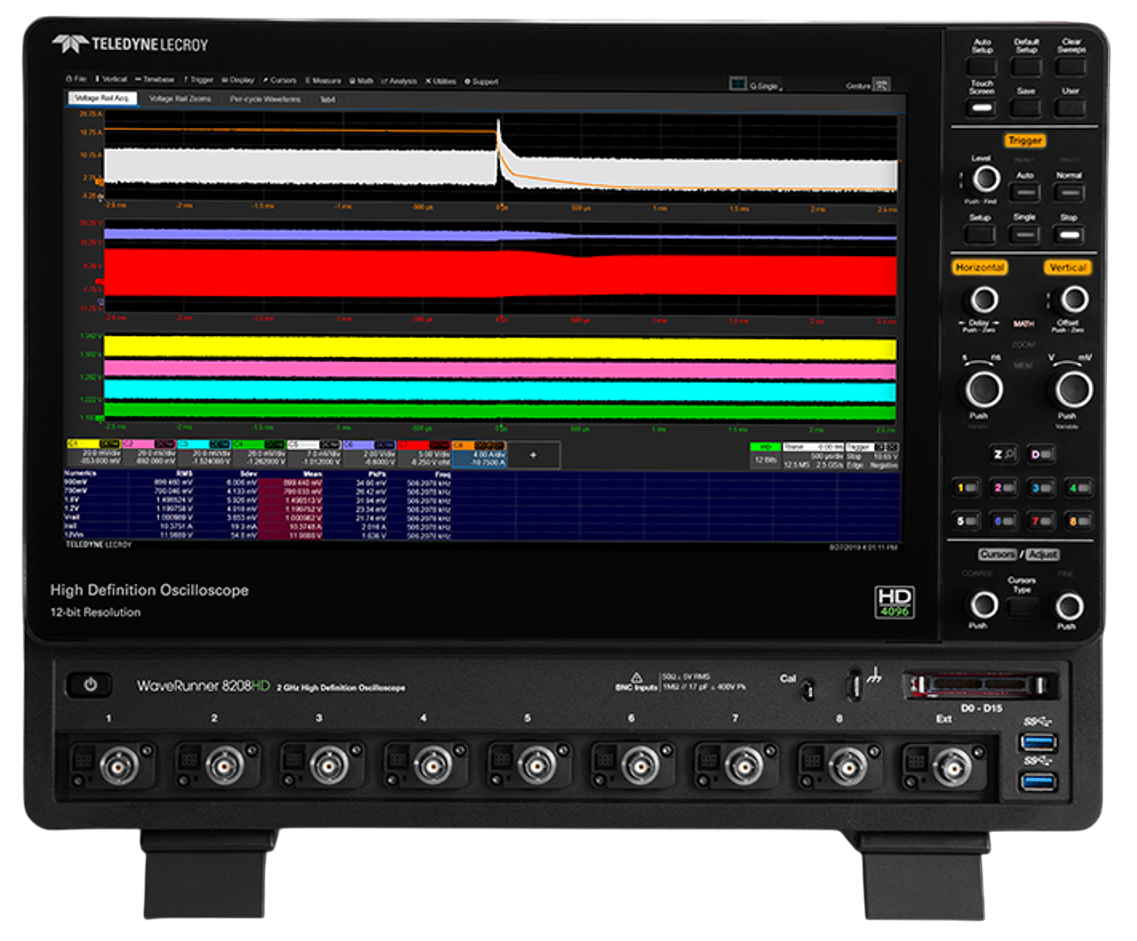

The WaveRunner 8000HD 8 channel oscilloscopes are the only oscilloscopes to offer 8 analog channels and 16 digital channels, allow synchronization of two 8-channel systems, and not penalize you for using a digital channel. Other oscilloscopes require that you trade a valuable analog channel in exchange for digital inputs.

View and control 16 analog channels on a single display with OscilloSYNC technology – just like having a single 16-channel acquisition system. Setup is incredibly easy with four simple steps. The activation key can be downloaded at no charge from: teledynelecroy.com/redeem/OscilloSYNC

With up to 5 Gpts of acquisition memory, WaveRunner 8000HD 8 channel, 12-bit oscilloscopes capture long periods of time, yet maintain high sample rate for visibility into the smallest details. WaveRunner 8000HD can acquire 500 ms of data at the full 10 GS/s sample rate - and always with 12 bits of resolution.

WaveRunner 8000HD 8 channel, 12-bit oscilloscopes deliver 8 analog channels (16 with OscilloSYNC), 3-phase power analysis software, and high performance probes for inverter subsection, power system and control testing.

WaveRunner 8000HD 8 channel, 12-bit oscilloscopes combine a high channel count, long memory, and wide range of validation and debug software to best address the specific test needs of the automotive industry.

WaveRunner 8000HD 8 channel, 12-bit oscilloscopes' high resolution, long memory and high channel count let you validate and debug all aspects of power supply, delivery and consumption - for complete confidence.

WaveRunner 8000HD 8 channel, 12-bit oscilloscopes acquire the longest records at the highest resolution for the most comprehensive deeply embedded computing system analysis (analog, digital, serial data and sensor).
