• 500 MHz - 4 GHz bandwidths
• Up to 40 GS/s sample rate
• 15.4” capacitive touch screen
• MAUI with OneTouch
• Powerful, Deep Toolbox
• Exceptional Serial Data Tools
• 16 digital channels with 1.25 GS/s
• Huge Applied Offset Range
• Optional Application Packages

MAUI - Most Advanced User Interface puts all the power and capabilities of the oscilloscope right at your fingertips. Designed for touch, built for simplicity, and made to solve. MAUI with OneTouch incorporates drag, drop and flick to provide unsurpassed efficiency in oscilloscope operation. Learn more about MAUI.

Our waveshape analysis tools and application packages provide unparalleled insight. Learn more at The Periodic Table of Oscilloscope Tools. Combine our powerful, deep toolbox with up to 64 Mpts/ch of acquisition memory and the most powerful motherboard in its class - an Intel® CoreTM i5-6500 Quad (core), 3.2 GHz, with up to 16 GB of RAM.

Up to 29 standards supported - all with the industry's best serial decoder. Many are provided with high performance triggers, unique measure and graph tools for validation efficiency (including a software serial DAC), and eye diagrams and physical layer testing tools. Learn more at teledynelecroy.com/tdme. Access the most complete set of serial data analysis tools (SDAIII) to form eye diagrams and decompose jitter into Tj, Rj, Dj and beyond.

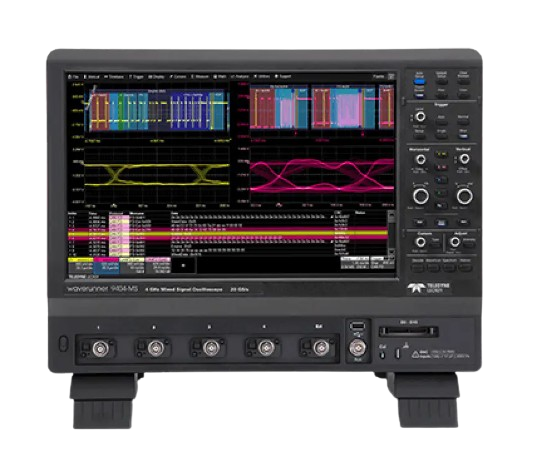

Teledyne LeCroy's WaveRunner 9000-MS mixed signal oscilloscope combines the high-performance analog channels of the WaveRunner 9000 with the flexibility of 16 digital inputs. In addition, the many triggering and decoding options turn the WaveRunner 9000-MS into an all-in-one analog, digital, serial debug machine.

A 16-bit offset DAC permits ±10 V offset at 20 mV/div, ±4 V at 5 mV/div, and an amazing ±1.6 V offset at the highest sensitivity (1 mV/div). Such large applied offsets make it easy to acquire and view small signal variations (e.g. ripple, noise, transient interference) on DC or sensor signals. They also provide extended offset ranges for many of Teledyne LeCroy's high voltage probes.

An industry leading 40 GS/s sample rate allows for a detailed edge reconstruction even for signals with the fastest rise times. Long memory allows for maximum sample rate to be maintained in longer timebases. 64 Mpts of memory is ideal for debugging long term behavior on high speed serial data buses.

WaveRunner 8104-R, WaveRunner 8254M-R and WaveRunner 8404M-R oscilloscopes utilize the WaveRunner 9000 acquisition system to provide a high-performance, 4 GHz oscilloscope in a convenient, low-profile form factor.
