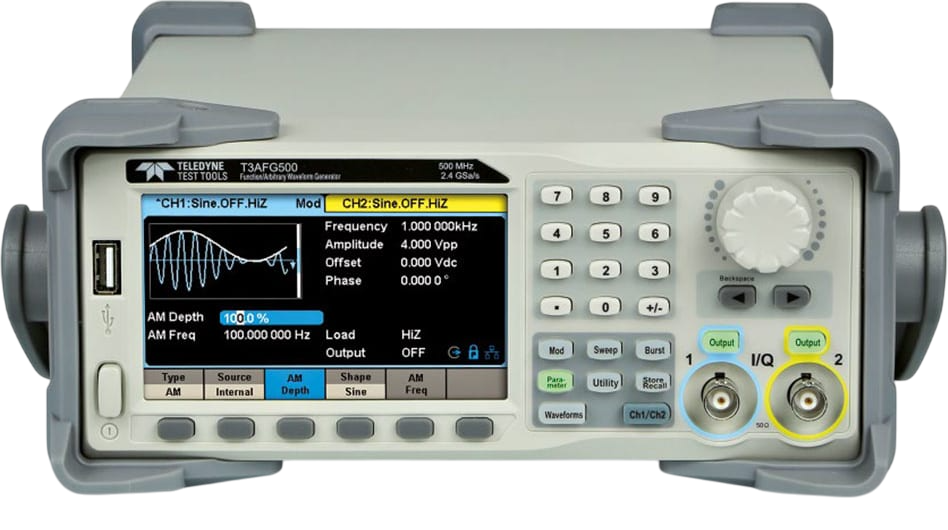

T3AFG series

波形產生器 ( 2 通道 )

頻寬: 120 MHz、 200 MHz、 350 MHz、500 MHz

T3AFG120 Datasheet ‌ T3AFG200/350/500 Datasheet ‌
Key Features
  • Available in 120MHz, 200MHz, 350MHz and 500MHz models.
  • All models feature 2 channels.
  • Max Sampling rate : 1.2 Gsa/s (120MHz) and 2.4 Gsa/s (200MHz, 350MHz and 500MHz) models.
  • Up to 16-bit vertical resolution
  • All models have 4.3" Touchscreens.
  • Excellent analog and digital modulation types available (AM, DSB-AM, FM, PM, PSK, FSK, ASK and PWM).
Main Features and Functions of the T3AFG120

T3AFG120 is a dual-channel function/arbitrary waveform generator with specifications of up to 120MHz maximum bandwidth, 1.2GSa/s sampling rate and 16-bit vertical resolution. The series models can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

  • Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
  • High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost.
  • Extensive range of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst function
  • Harmonic function
  • 196 built-in arbitrary waveforms
  • High precision Frequency Counter
  • Standard interfaces: USB Host, USB Device（USBTMC, LAN VXI-11）
  • 4.3” touch screen display for easier operation
Main Features and Functions of the T3AFG200, T3AFG350 & T3AFG500

The T3AFG200, T3AFG350 & T3AFG500 are a series of dual-channel function/arbitrary waveform generators with specifications of up to 500MHz maximum bandwidth, 2.4GSa/s sampling rate and 16-bit vertical resolution. The series models can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

  • Dual-channel, 500MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
  • High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost.
  • Extensive range of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst function
  • Harmonic function
  • 196 built-in arbitrary waveforms & optional IQ modulation capability
  • High precision Frequency Counter
  • Standard interfaces: USB Host, USB Device（USBTMC, LAN VXI-11）
  • 4.3” touch screen display for easier operation
  T3AFG120 T3AFG200 T3AFG350 T3AFG500
Bandwidth 120 MHz200 MHz350 MHz500 MHz
Channel2 Ch2 Ch2 Ch2 Ch
Memory per Ch 8 Mpts 20 Mpts 20 Mpts 20 Mpts
Sample Rate per Ch 1.2 GS/s 2.4 GS/s  2.4 GS/s  2.4 GS/s 
Vertical D/A Resolution16 Bits
Waveform 5 Standard, 196 Arbitrary7 Standard (Sine, Square, Pulse, Ramp, DC, Noise, PRBS), 196 Arbitrary
Sine 1 μHz ~ 120 MHz1 μHz – 200 MHz1 μHz – 350 MHz1 μHz – 500 MHz
Square 1 μHz ~ 25 MHz1 μHz – 80 MHz1 μHz – 120 MHz1 μHz – 120 MHz
Pulse 1 μHz ~ 25 MHz1 μHz – 80 MHz1 μHz – 150 MHz1 μHz – 150 MHz
Arbitrary 1 μHz ~ 20 MHz 1 μHz – 50 MHz
Ramp/Triangular 1 μHz ~ 1 MHz 1 μHz – 5 MHz
Gaussian white noise120 MHz (-3 dB)200 MHz (-3 dB350 MHz (-3 dB500 MHz (-3 dB
Wide Range of Modulation Types

AM, DSB-AM, FM, PM, FSK, ASK,

PSK, PWM, Sweep, Burst

 AM, DSB-AM, FM, PM, FSK, ASK, PSK, PWM, Sweep, Burst, Harmonic
Connectivity USB Host, USB Device, LAN
Display 4.3 inch Touch Screen TFT LCD
加入詢價單 機型 敘述 備註
T3AFG120 120 MHz, 1.2 GS/s, 8 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator N/A
T3AFG200 200MHZ, 2.4 GS/s, 20 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator N/A
T3AFG350 350MHZ, 2.4 GS/s, 20 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator N/A
T3AFG500 500MHZ, 2.4 GS/s, 20 Mpts, 2 Channel, 20 Vpp Function/Arbitrary Waveform Generator N/A
