T3CP500-5

500A, 5 MHz CURRENT PROBE, BNC, AC/DC, 500A rms, 750A Peak Pulse

AC/DC 電流探頭由外部通用電源供電，可與任何具有高阻抗 BNC 輸入的示波器配合使用。 五種電流探頭的範圍包括頻寬高達 100 MHz、峰值電流高達 500A 和靈敏度為 1 mA/div 的型號。

Fact Sheet ‌ Datasheet ‌ Manuals ‌
T3CP500-5 T3CP500-5
T3CP500-5 T3CP500-5

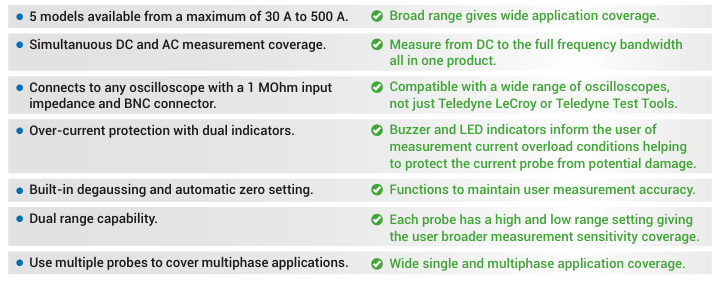

Key Features

Main Spec

  Bandwith   DC – 5 MHz
  Continuous Maximum Input  500A
  Maximum Peak Input (≤ 10 µs)  750A
  Maximum Measurement Conductor Diameter  20 mm
  •  Accurate and easy current measurements.
  • Wide bandwidth.
  • Combined DC and AC measurements.
  • Over-current protection with dual indicators.
  • Highandlowrange / sensitivityselection (dual range).
  • Low current measurements feature.
  • Degaussing and automatic zero setting.
  • Usercontrolofrange / sensitivityselection,degaussing and automatic zero
